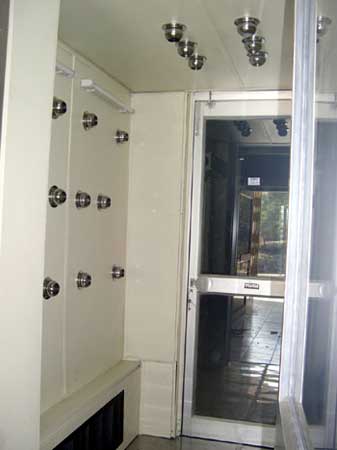

We provide to the valued clients Air Shower, which is widely appreciated for its superior quality and performance. The Air Shower is basically used to supply class 100 HEPA filtered air at maximum velocity to remove impurities from the clean room. Based on their high efficiency and easy functioning, we have been able to expand our client base.
- Two Stage filtration
- EU6 – Prefilter (95% down to 5 micron) for return air & fresh air intake
- EU14 – HEPA Filter (99.999% down to 0.3 micron) at supply position
- SS 304 doors with double walled flush glass view panels and door closer
- Properly balanced Motor-blowers with suspension arrangement to minimize the noise level
- Differential Pressure Gauge : 1 No.
- ON/OFF Switches
- DOP Test Port
- 5/15 Amp Switch Socket for external equipment
- Control Systems ensuring that both the doors cannot be opened at the same time and will be locked when the air flow is on.
- Timer for setting Air Shower : settable from 30 seconds to 5 minutes
- Emergency stop button
- Straight Entry – Straight Exit / 900 Door Opening automatically as well as manually
Used for :
- Blowing away dust and dirt that comes with people and object
|MODEL||WORK AREA DIMENSION (L X W X H)|
|SJ-001||700 x 850 x 2000 MM|
|SJ-002||700 x 1200 x 2000 MM|
|Air cleanliness||ISO Class 5 (ISO 14644-1:1999 (E))|
|Air Velocities||18 – 20 mps|
|Power Supply||415V AC 3-Ø 50HZ|
